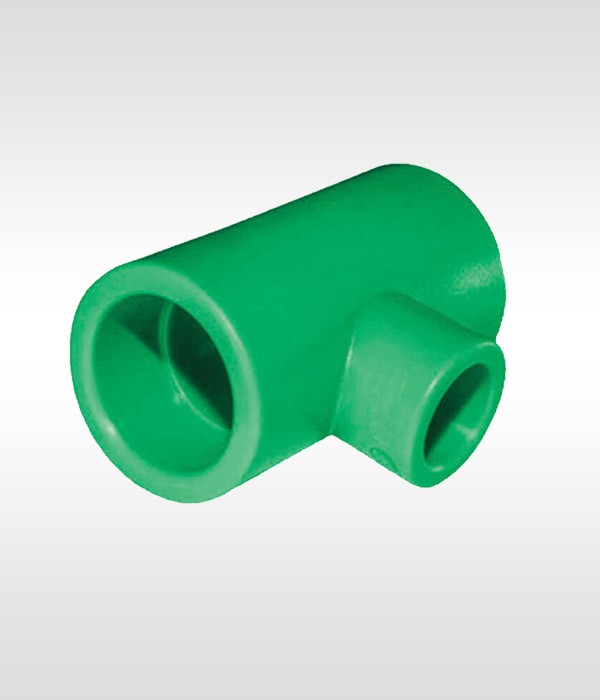

REDUCING TEE 90

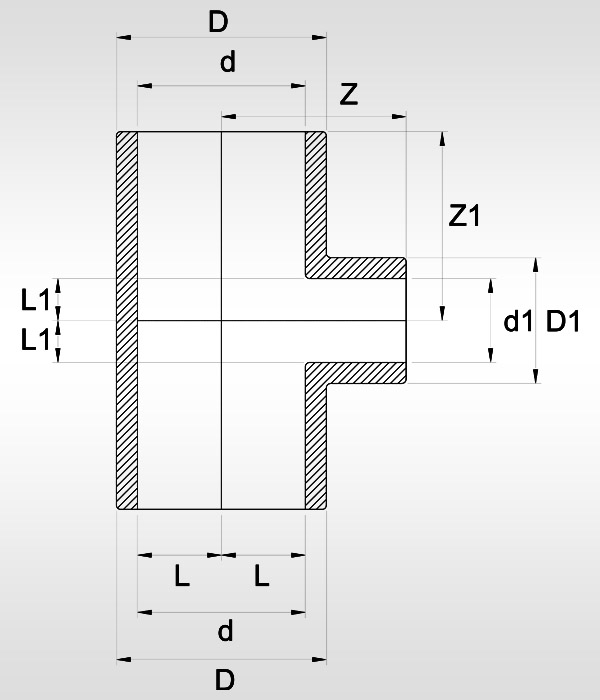

Dn-Dn-1Dn2			d - d1 - d			D	D1	D2	l	l1	z	z1
25	20	25	24.5	19.5	24.5	34	29	34	32	32	16	16
32	20	32	31.5	19.5	31.5	43	34	43	38	38	20	20
32	25	32	31.5	24.5	31.5	43	34	43	38	38	20	20
40	20	40	39.4	19.5	39.4	52	43	52	44	44	24	24
40	25	40	39.4	24.5	39.4	52	43	52	44	44	23	23
40	32	40	39.4	31.5	39.4	52	43	52	44	44	23	23
50	20	50	49.4	19.5	49.4	65	43	65	52	52	28	28
50	25	50	49.4	24.5	49.4	65	43	65	52	52	28	28
50	32	50	49.4	31.5	49.4	65	43	65	52	52	28	28
50	40	50	49.4	39.4	49.4	85	85	85	62	62	39	39
63	20	63	62.5	19.5	62.5	85	43	85	62	62	35	35
63	25	63	62.5	24.5	62.5	85	43	85	62	62	35	35
63	32	63	62.5	31.5	62.5	85	43	85	62	62	35	35
63	40	63	62.5	39.4	62.5	85	85	85	62	62	35	35
63	50	63	62.5	49.4	62.5	85	85	100	62	62	35	35
75	20	75	74.7	19.5	74.4	100	43	100	71	71	41	41
75	25	75	74.7	24.5	74.4	100	43	100	71	71	41	41
75	32	75	74.7	31.5	74.4	100	43	100	71	71	41	41
75	40	75	74.4	39.4	74.4	100	65	100	71	71	41	41
75	50	75	74.4	49.4	74.4	100	65	100	71	71	41	41
75	63	75	74.4	62.5	74.4	100	101	100	71	71	41	41
90	63	90	89.7	62.5	89.7	120	120	120	83	83	50	50
90	75	90	89.7	74.7	89.7	120	120	120	83	83	50	50
110	63	110	109.7	62.5 109.7		148	85	148	99	99	62	62
110	75	110	109.7	74.7 109.7		148	100	148	99	99	62	62
110	90	110	109.7	89.7 109.7		148	120	148	99	99	62	62
